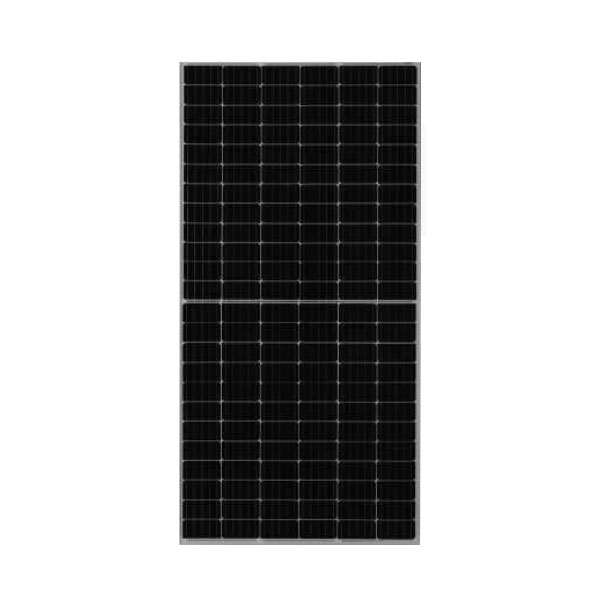

KEY FEATURE● MBB 182 mm half-cut PERC cells● 2 independent section design secures a higher energy yield in case of shading● High trans mission ,low Iron Tempered Glass● Half cut design in combination with m ulti busbar reduce operating current andintern al resistanceSuperior Warranty● 10 -year produ......
● MBB 182 mm half-cut PERC cells
● 2 independent section design secures a higher energy yield in case of shading
● High trans mission ,low Iron Tempered Glass
● Half cut design in combination with m ulti busbar reduce operating current andintern al resistance
● 10 -year product warranty
● 25-year linear power output warranty
| Frame Material | Anodized Aluminium Alloy |
| Froni Glass | Tempered Glass |
| Back Cover | TPT(Ccmposite film) |
| Cel!Encapsulan | EVA |
| Junction Eox | IP68 |
| Cables | 4mm.².9Ccm |
| Conuectoi | MC4 |
| Max wind load | 2400Pg |
| Max snow lcad | 5400Pa |
| NOCT | 45°℃(±22) |
| Tenperarure Coefficiei I of Pmax | -0.35%C |
| Temnerature Coefficient nf Voc | -0.31%/℃ |
| Temnerahure Coeficien!of Isr | 0.05%/℃ |
| Operating Temperature | -40℃~+85℃ |
| Module Type | XTMONO535HC | XTMMONO545HC | XTMONO550HC |
| Maximum Pcwer(Pmax) | 535W | 545W | 550W |
| Maximun:Power Voltage(Vmp | 41.8V | 42.2V | 42.4V |
| Maximun Power Current(lmp) | 12.8A | 12.91A | 12.97A |
| Open Circuit Voltagc(Voc) | 49.6V | 50V | 50.2V |
| Shorl Circuit Current(lsc) | 13.6A | 13.72A | 13.78A |
| Number of Cells | 144 (6*24) | 14416*24) | 144(6*24) |
| Size ol Cells(mm) | 182*91 | 182*9] | 182*91 |
| Dimensions(mmi) | 2256*1135*35 | 2256*1135*35 | 2256*1135*35 |
| Pewer Tolerance | ±3% | ||
| Maximum System Voltage | 1500VDC | ||
